PROJECT SHOWCASE

Industrial Steel Detailing

Evaporators Industrial Building · Structural Design & Detailing Expert

Collaborator
Luis Hernandez
Role
Structural Design & Detailing Expert
Year
2022
Location
Cali, Colombia

THE PROJECT

From intent to something buildable.

This project demanded millimetric coordination between steel structures and equipment installation. Luis Hernandez managed shop drawings, equipment coordination, fabrication and erection so each frame, platform and connection fit on site.

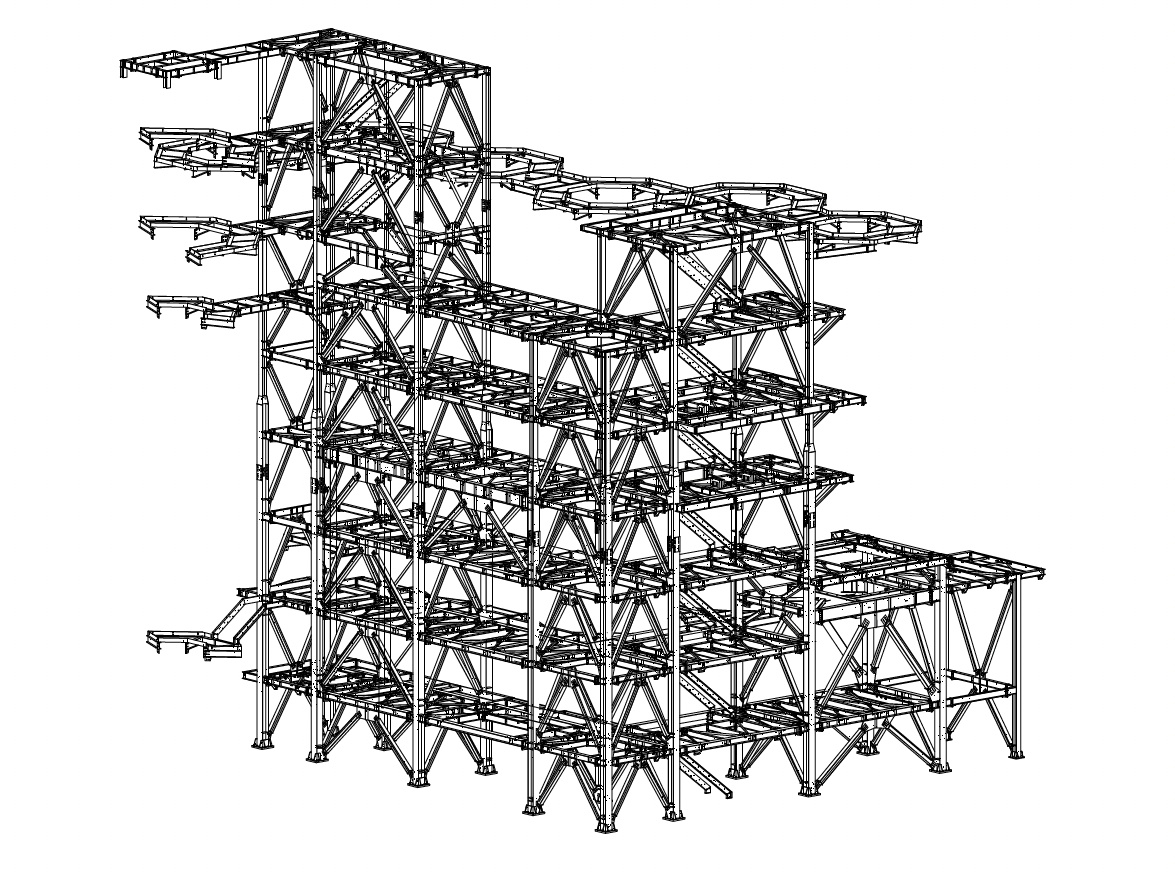

Multi-story evaporator steel platform model showing framing, access platforms, and coordinated connections.
Multi-story evaporator steel platform model showing framing, access platforms, and coordinated connections.

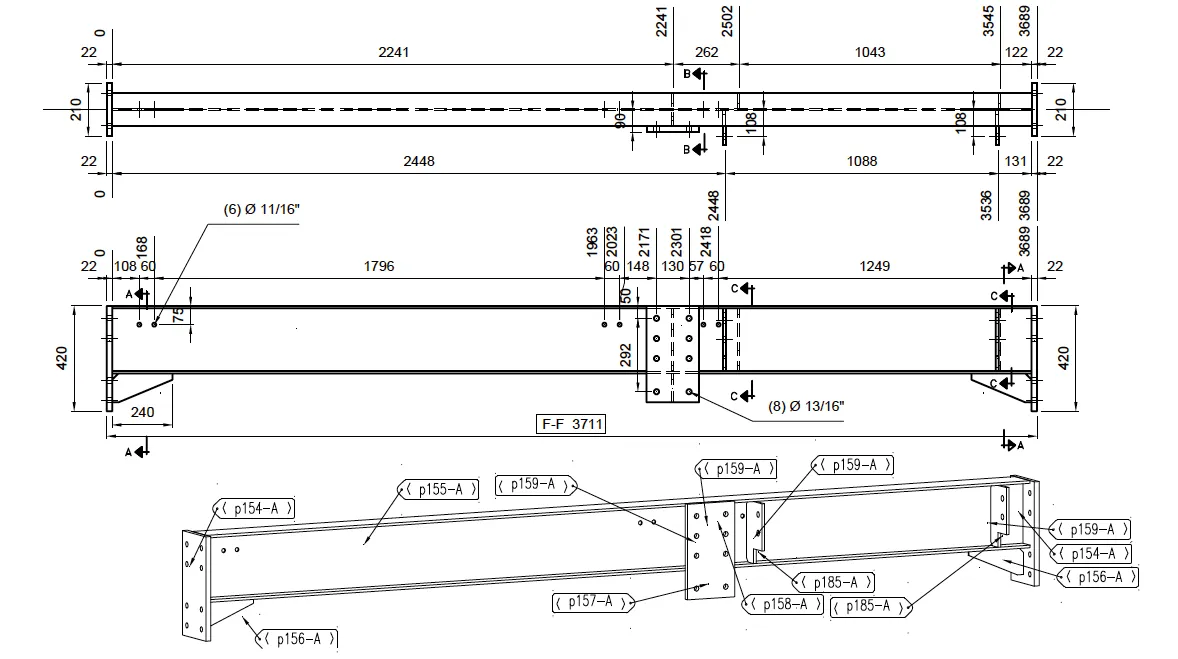

Steel beam fabrication detail showing dimensions, bolt holes, and cross-sectional specifications.
Steel beam fabrication detail showing dimensions, bolt holes, and cross-sectional specifications.

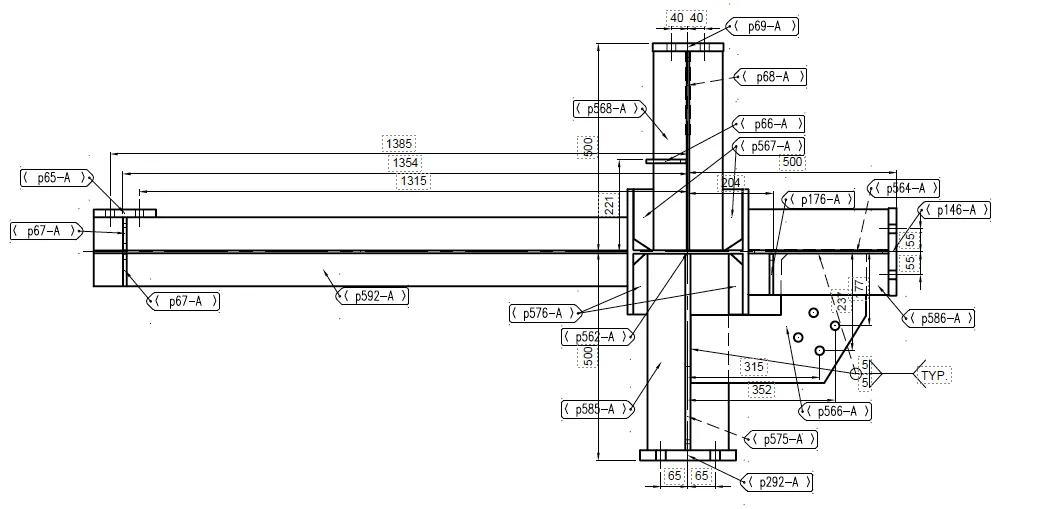

Industrial steel assembly drawing showing dimensions, labels, and part details for fabrication.
Industrial steel assembly drawing showing dimensions, labels, and part details for fabrication.

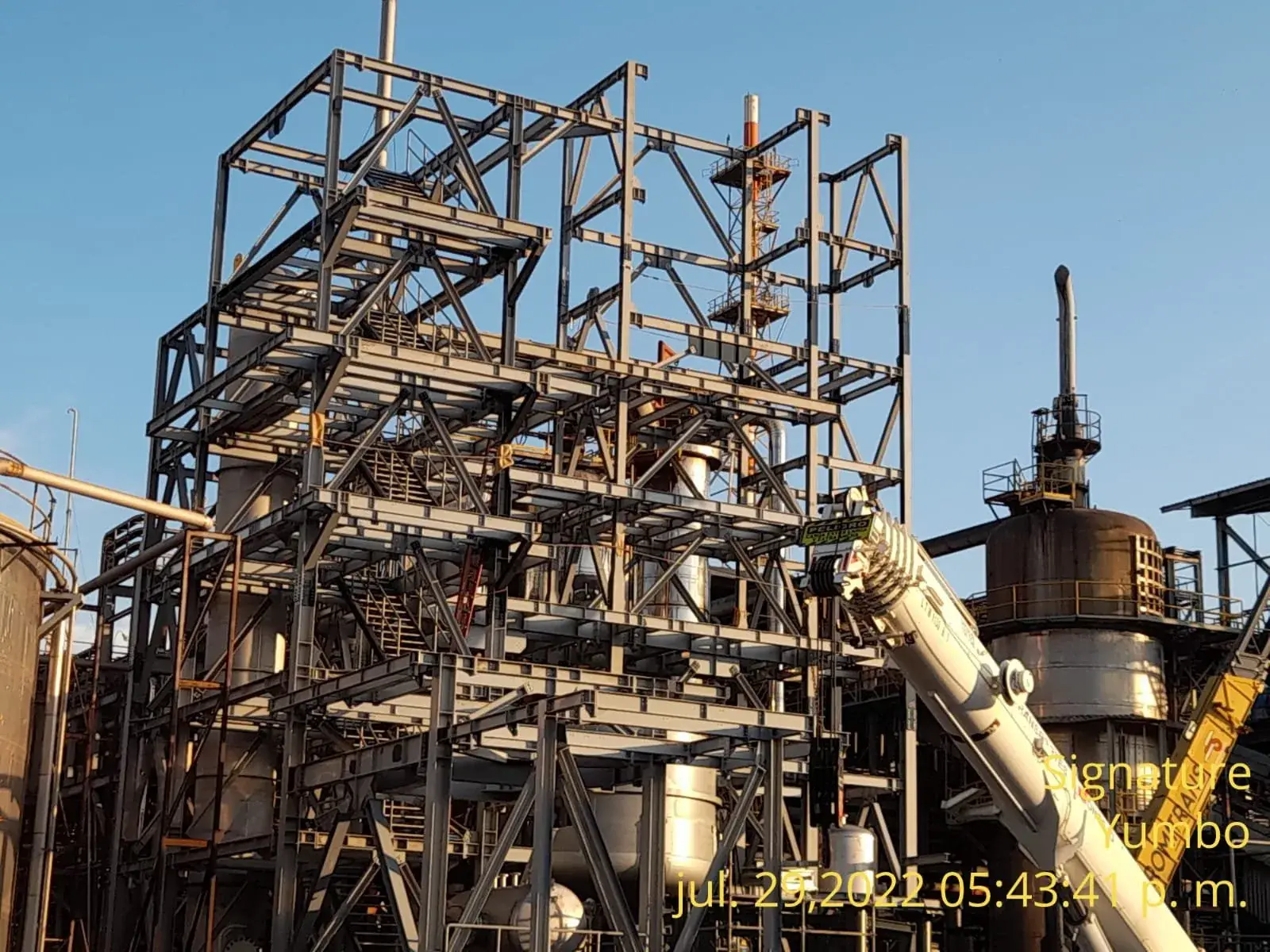

Photograph of the industrial steel structure during field installation and equipment coordination.
Photograph of the industrial steel structure during field installation and equipment coordination.

COLLABORATOR SPOTLIGHT

Engineer Luis Hernández

Luis Hernandez is a structural engineer with more than a decade of experience in steel and concrete design and detailing. For this year-long project, he coordinated shop drawings with equipment vendors and oversaw fabrication and erection.
